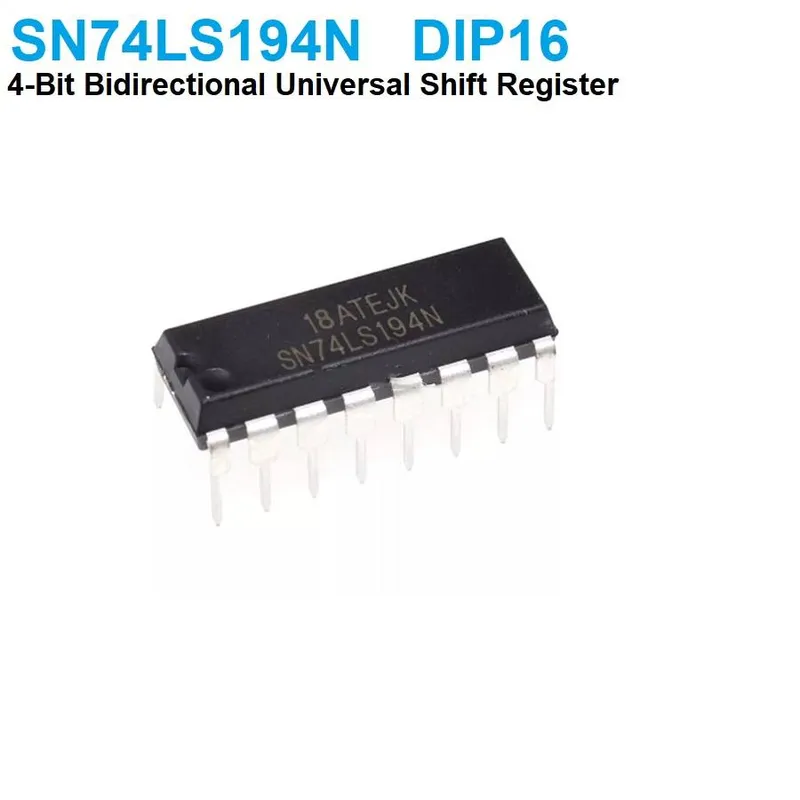

74LS194 4-Bit Bidirectional Shift Register IC DIP-16
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Microohm | 74LS194 4-bit Bi-directional Shift Register IC (74194 IC) DIP-16 Package | 25 EGP33 | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 25 EGP
About this product
The 74LS194 is a 4-bit bidirectional universal shift register from the low-power Schottky TTL family, housed in a DIP-16 package. It supports parallel loading, left and right serial shifting and a hold mode, making it useful for serial-to-parallel conversion, data buffering and simple sequencing in digital logic projects.
Specifications
- Logic family
- TTL (74LS series)
- Type
- 4-bit bidirectional universal shift register
- Operating modes
- Hold, shift left, shift right, parallel load
- Clear
- Asynchronous master reset (active low)
- Package
- DIP-16
- Supply voltage
- 5 V nominal (4.75 to 5.25 V)
Frequently asked questions
What is the price of 74LS194 4-Bit Bidirectional Shift Register IC DIP-16 in Egypt?
74LS194 4-Bit Bidirectional Shift Register IC DIP-16 currently costs 25 EGP in Egypt.
Where can I buy 74LS194 4-Bit Bidirectional Shift Register IC DIP-16 in Egypt?
74LS194 4-Bit Bidirectional Shift Register IC DIP-16 is available from Microohm. Compare the offers above to find the best price.
Is the 74194 the same as the 74LS194?
The 74LS194 is the low-power Schottky version of the 74194 family. It is functionally equivalent and pin-compatible, with lower power consumption.
How should unused inputs be connected?
Do not leave inputs floating. Tie unused data or control inputs to a defined logic level (VCC or GND) as required by your circuit, and connect VCC to 5 V and GND to ground.
