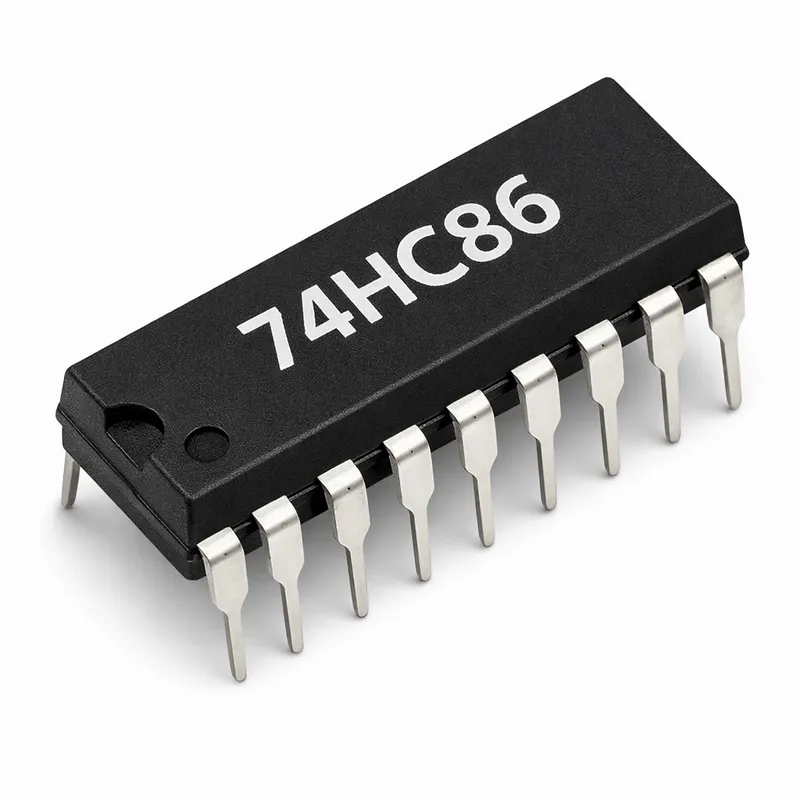

74HC86 Quad 2-Input XOR (Exclusive-OR) Gate IC
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The 74HC86 is a high-speed CMOS IC containing four independent 2-input exclusive-OR (XOR) gates. An output goes high only when its two inputs are different. It is used for data comparison, parity generation, error detection and simple adder or toggle logic in digital and educational circuits.
Specifications
- Logic family
- CMOS high-speed (74HC series)
- Number of gates
- 4 independent 2-input XOR gates
- Supply voltage
- 2 V to 6 V
- Input logic levels
- TTL compatible
- Package
- DIP-14
Frequently asked questions
What should I do with unused inputs on the 74HC86?
Tie unused inputs to GND or VCC. Do not leave CMOS inputs floating, because this can cause unstable outputs and extra power consumption.
Can one XOR gate be used as an inverter?
Yes. If one input is held high (VCC), the output is the inverse of the other input. Holding one input low passes the other input through unchanged.
