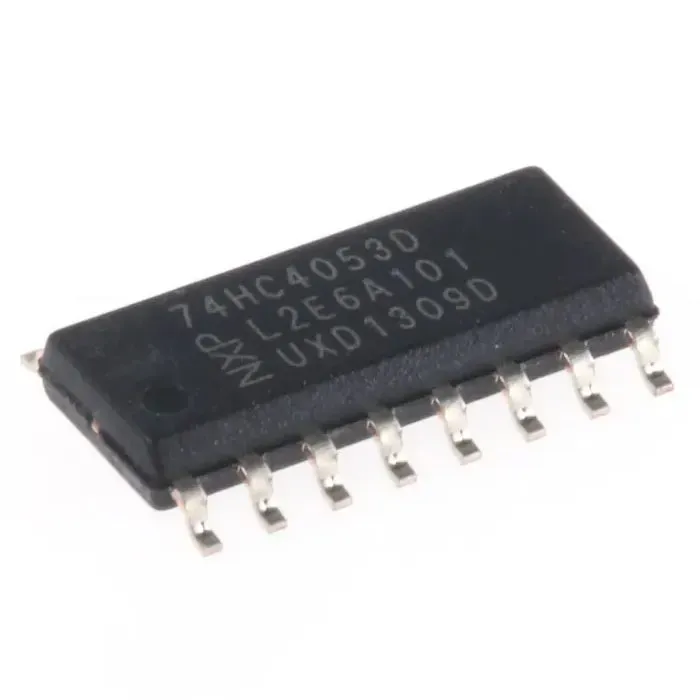

74HC4053D Triple SPDT Analog Multiplexer/Demultiplexer SOIC-16
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | 74HC4053D SMD IC Triple 2-channel Analog Multiplexer/Demultiplexer SOIC-16 | 12 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 12 EGP
About this product
The 74HC4053D contains three independent 2:1 analog multiplexers/demultiplexers (SPDT switches) in a SOIC-16 package. It is used to switch analog signals, select between two sensor inputs, or route audio and control lines in low-voltage CMOS designs.
Specifications
- Number of Circuits
- 3
- Multiplexer Configuration
- 2:1 (SPDT)
- On-State Resistance (Max)
- 120Ohm
- Supply Voltage (Single)
- 2V ~ 10V
- -3dB Bandwidth
- 170MHz
- Crosstalk
- -60dB @ 1MHz
- Package
- SOIC-16 (3.90mm)
Frequently asked questions
What is the price of 74HC4053D Triple SPDT Analog Multiplexer/Demultiplexer SOIC-16 in Egypt?
74HC4053D Triple SPDT Analog Multiplexer/Demultiplexer SOIC-16 currently costs 12 EGP in Egypt.
Where can I buy 74HC4053D Triple SPDT Analog Multiplexer/Demultiplexer SOIC-16 in Egypt?
74HC4053D Triple SPDT Analog Multiplexer/Demultiplexer SOIC-16 is available from Makers Electronics. Compare the offers above to find the best price.
Can it switch signals beyond the supply rails?
No. Analog signals should stay within the supply voltage range of the device. For dual supply operation the datasheet lists ±1.5V to ±5V.
How are the switches controlled?
Each of the three switches has its own select pin, and the common enable pin (INH) disables all switches when high. Check the datasheet for the exact pin mapping of each section.
