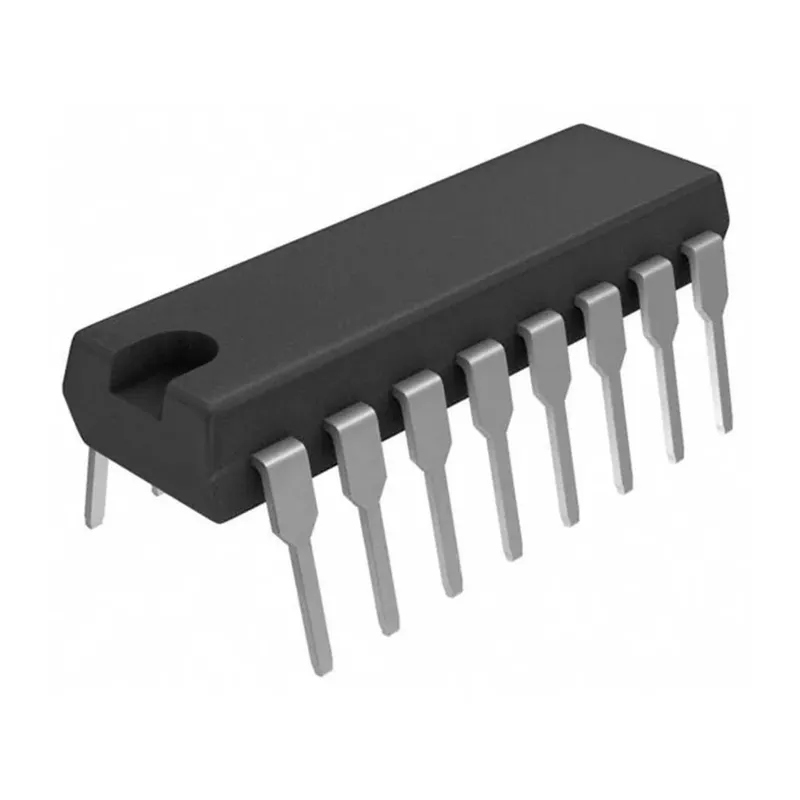

74HC151 8-Channel Digital Multiplexer DIP-16 (CD74HC151E)
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Future Electronics | 74HC151 (8-input Multiplexer) | 15 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 15 EGP
About this product
A 74HC-series CMOS 8-to-1 digital multiplexer in a 16-pin DIP package. Three binary select inputs (S0, S1, S2) choose one of eight data inputs, and an active-LOW enable input turns the output on. It provides both inverting and non-inverting outputs and operates from 2 V to 6 V.
Specifications
- Data inputs
- 8 (I0 to I7)
- Select inputs
- 3 (S0, S1, S2)
- Supply voltage
- 2 V to 6 V
- Propagation delay
- 170 ns at 2 V, 29 ns at 6 V
- Output current
- 5.2 mA at 6 V
- Operating temperature
- -40 °C to +125 °C
- Package
- DIP-16
Frequently asked questions
What is the price of 74HC151 8-Channel Digital Multiplexer DIP-16 (CD74HC151E) in Egypt?
74HC151 8-Channel Digital Multiplexer DIP-16 (CD74HC151E) currently costs 15 EGP in Egypt.
Where can I buy 74HC151 8-Channel Digital Multiplexer DIP-16 (CD74HC151E) in Egypt?
74HC151 8-Channel Digital Multiplexer DIP-16 (CD74HC151E) is available from Future Electronics. Compare the offers above to find the best price.
How do I select a channel?
Set S2, S1, S0 as a 3-bit binary number from 000 to 111 to select I0 to I7. The enable input must be LOW for the output to follow the selected channel.
Can I use it with 5 V logic?
Yes. The supply range is 2 V to 6 V, so it runs from a 5 V supply and works with 5 V logic signals.
