5V 2A Wireless Charging Transmitter and Receiver Coil Module
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

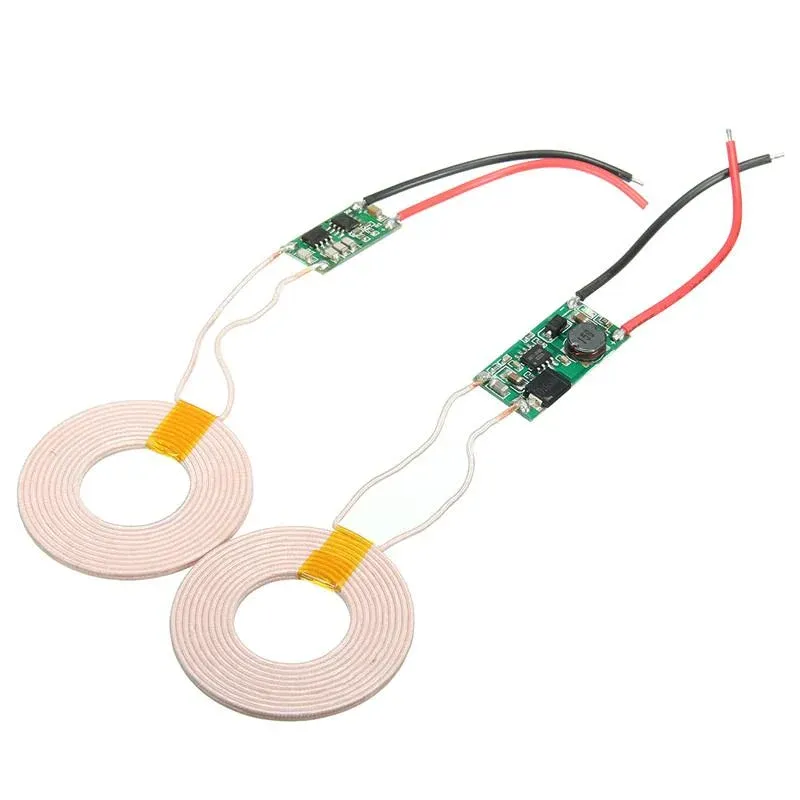

A wireless power transmitter and receiver coil pair for inductive charging over short distances. The transmitter accepts 5 V input, and the receiver outputs 5 V at up to 1 A. Normal use distance is 2 to 10 mm, which suits experiments and small wireless charging projects.
Specifications
- Transmitter input voltage
- 5 V
- Transmitter input current
- 1.2 - 2 A
- Transmitter output current
- 700 mA
- Receiver output
- 5 V / 1 A
- Normal use distance
- 2 - 10 mm
Frequently asked questions
How far apart should the transmitter and receiver coils be?
The listed normal use distance is 2 to 10 mm. Keeping the coils within this range and well aligned gives the most reliable power transfer.
Can the receiver output charge a battery directly?
The receiver outputs 5 V at up to 1 A. To charge a battery safely, add a suitable charger or protection circuit between the receiver output and the cell, since a raw 5 V output is not a battery charger.
