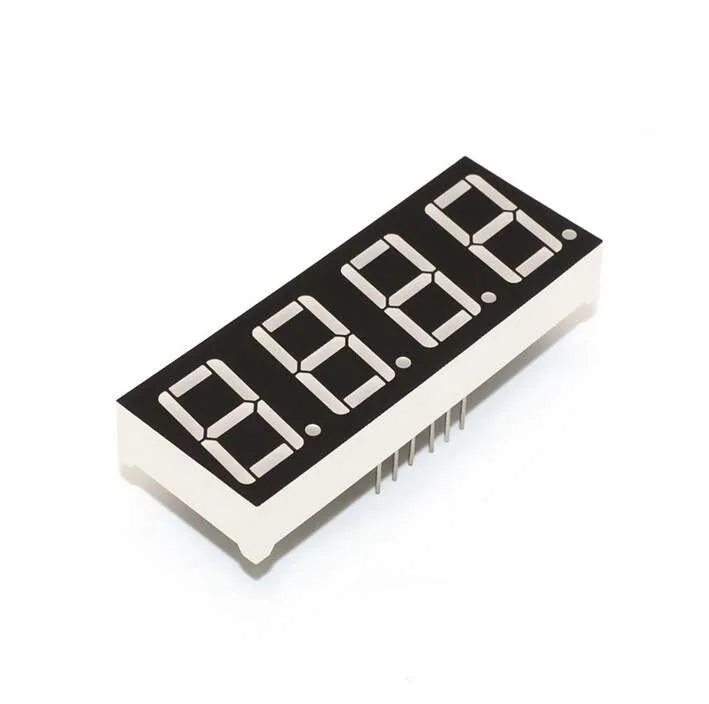

5643AS 4-Digit 0.56 inch 7-Segment Clock Display Common Cathode Red
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | 5643AS Clock Time 7 Segment 4 Digit 0.56 Inch Com.Cathode – RED | 20 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 20 EGP
About this product
The 5643AS is a 4-digit, 0.56-inch red 7-segment LED display with a common cathode and a center colon on pins D5 and D6. Its standard 12-pin layout suits multiplexed wiring to a microcontroller. It is used for digital clocks, timers and counters.
Specifications
- Digits
- 4
- Digit height
- 0.56 inch
- Color
- Red
- Configuration
- Common cathode
- Colon
- Center colon on D5/D6
- Pin count
- 12
Frequently asked questions
What is the price of 5643AS 4-Digit 0.56 inch 7-Segment Clock Display Common Cathode Red in Egypt?
5643AS 4-Digit 0.56 inch 7-Segment Clock Display Common Cathode Red currently costs 20 EGP in Egypt.
Where can I buy 5643AS 4-Digit 0.56 inch 7-Segment Clock Display Common Cathode Red in Egypt?
5643AS 4-Digit 0.56 inch 7-Segment Clock Display Common Cathode Red is available from Makers Electronics. Compare the offers above to find the best price.
How do I drive a common cathode 7-segment display?
Connect each digit's common cathode pin to ground through a transistor or a sinking driver, and connect each segment pin to a microcontroller output through a current-limiting resistor. Multiplex the digits by enabling one common at a time.
Which pins are the colon on the 5643AS?
The center colon is on pins D5 and D6 according to the listing. Confirm the full pin mapping in the datasheet of your exact unit before wiring, as the segment and digit pin order must match your driver code.
