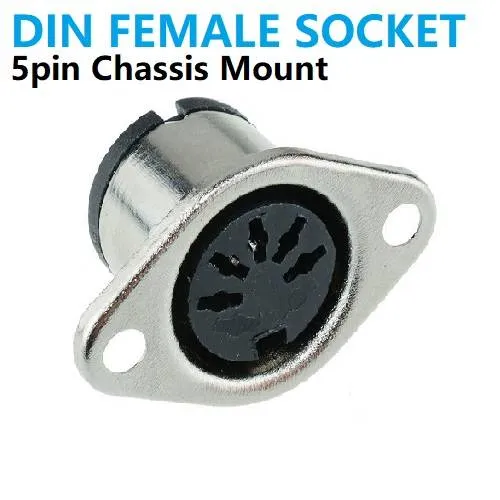

5-Pin DIN Female Chassis Mount Connector, Solder Type
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A 5-pin DIN female socket for chassis mounting, with a nickel-plated body and solder terminals for wiring or PCB use. It is commonly used for MIDI connections, audio equipment and older DIN-based electronics. Its silver finish and panel mount make it suitable for building custom enclosures.
Specifications
- Pins
- 5
- Gender
- Female
- Mounting
- Chassis mount
- Termination
- Solder
- Plating
- Nickel plated
- Color
- Silver
Frequently asked questions
Can I use this connector for MIDI devices?
The 5-pin DIN form factor is the one used for MIDI, but MIDI wiring depends on the pin layout (for example 180° or 240° arrangement). Confirm the pin layout in your device or cable specification before wiring.
How do I wire this connector to a circuit?
Solder each wire to the terminal that matches the pin number in your circuit or pinout diagram. Check the numbering on the connector before soldering, since DIN pin numbers are not always sequential in the way you expect.
