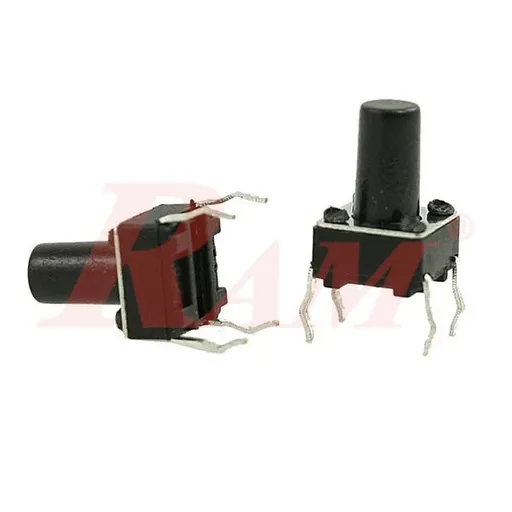

4-Pin Tact Switch 6x6x9 mm
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 RAM Electronics | Press 4pin 6x6x9 mm Tack Switch | 0.75 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 0.75 EGP
About this product
A 4-pin momentary tact push button with a 6 x 6 mm footprint and 9 mm body height. The taller actuator makes it easier to press in panel or enclosure designs, and it is used for reset, mode selection and general input on microcontroller projects.
Specifications
- Pin count
- 4
- Body size
- 6 x 6 x 9 mm
- Type
- Momentary (Tact)
Frequently asked questions
What is the price of 4-Pin Tact Switch 6x6x9 mm in Egypt?
4-Pin Tact Switch 6x6x9 mm currently costs 0.75 EGP in Egypt.
Where can I buy 4-Pin Tact Switch 6x6x9 mm in Egypt?
4-Pin Tact Switch 6x6x9 mm is available from RAM Electronics. Compare the offers above to find the best price.
How do I wire a 4-pin tact switch to a microcontroller?
Pins on the same side are internally connected. Connect one pin on one side to the GPIO pin and one pin on the opposite side to GND, then use an internal or external pull-up.
What is the advantage of the taller 9 mm body?
The 9 mm height lets the button sit higher above the board, which helps when it must protrude through a panel or enclosure. Use a shorter tact switch where board clearance is tight.
