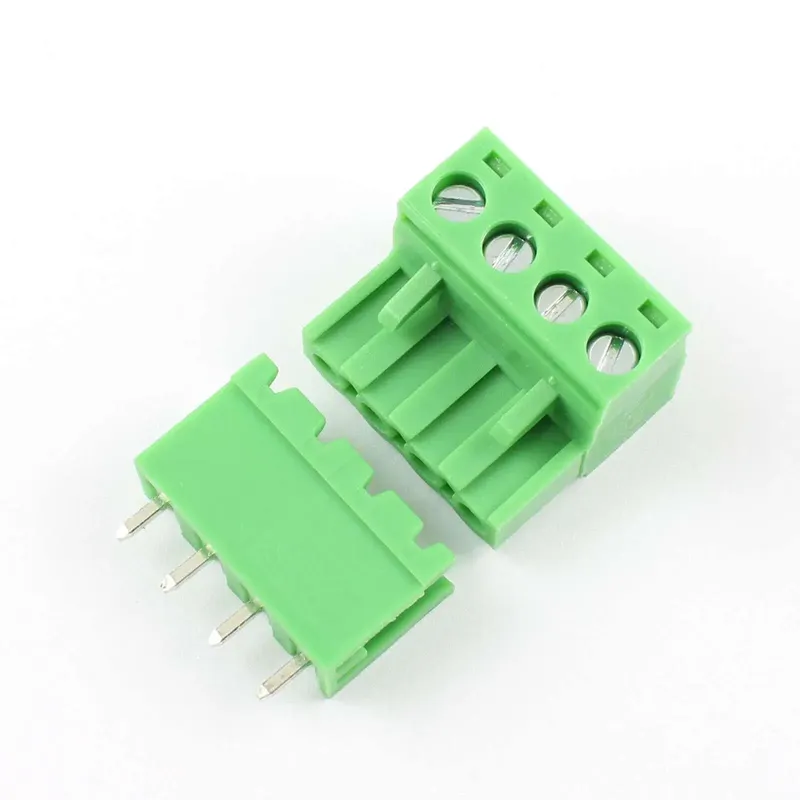

4-Pin Pluggable Terminal Block, 5.08mm Pitch
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Most ElectronicsCheapest | Pluggable Terminal Block 4-Pin | 10.9 EGP12.05 | View in store |
 Makers Electronics | Pluggable Terminal Block KF2EDGR-5.08-4P PCB Solder Right Angle 5.08mm 4 Pin | 11 EGP | View in store |
 Microohm | Pluggable Terminal Block 4 Pin | 12 EGP17 | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 10.9 EGP
About this product
A 4-position pluggable terminal block with 5.08 mm (0.200 in) pitch, designed for right-angle mounting on a PCB. It is suited to motor leads, power inputs and sensor connections in control boards, letting wiring be removed for servicing. The listed ratings are 300 V and 10 A.
Specifications
- Number of positions
- 4
- Pitch
- 5.08 mm (0.200")
- Maximum voltage
- 300 V
- Maximum current
- 10 A
- Wire size
- Up to 2.5mm
- Mounting
- Right angle to PCB
Frequently asked questions
What is the price of 4-Pin Pluggable Terminal Block, 5.08mm Pitch in Egypt?
4-Pin Pluggable Terminal Block, 5.08mm Pitch currently costs between 10.9 and 12 EGP across 3 offers in Egypt.
Where can I buy 4-Pin Pluggable Terminal Block, 5.08mm Pitch in Egypt?
4-Pin Pluggable Terminal Block, 5.08mm Pitch is available from Most Electronics, Makers Electronics, and Microohm. Compare the offers above to find the best price.
Which pin should I use for polarity on a DC motor or power input?
Follow the silkscreen or wiring diagram of your board or module. Terminal positions are numbered in order, so match each wire to the labelled function.
Can I use it with a 5.08mm pitch PCB header?
Yes, the 5.08 mm pitch matches standard 5.08 mm pluggable headers. Confirm the pin count and mounting style of the header on your board.
