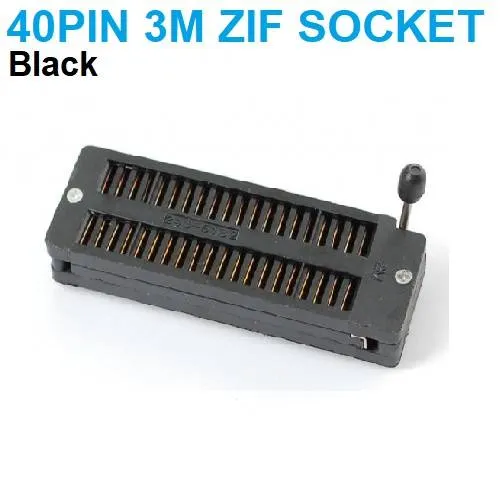

3M ZIF IC Socket, 40-Pin DIP, Black, Gold-Plated
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
Zero insertion force (ZIF) socket for DIP ICs up to 40 pins and 0.3 to 0.6 inch wide. A lever lets you drop the chip in without force and clamp it in place, which protects the pins during programming or repeated testing. Gold-plated contacts, and it can be fitted into an existing 40-pin, 0.6 inch socket or board footprint.
Specifications
- Type
- ZIF (zero insertion force) DIP socket
- Pins
- 40
- Chip width
- 0.3" to 0.6"
- Contact plating
- Gold
- Color
- Black
Frequently asked questions
What is this socket used for?
It is used for chip programmers and for testing ICs, so you can insert and remove a chip many times without bending its pins.
How do I seat a chip correctly?
Raise the lever, align pin 1 of the chip with the socket's pin 1 marking, drop the chip in without force, then lower the lever to latch it.
