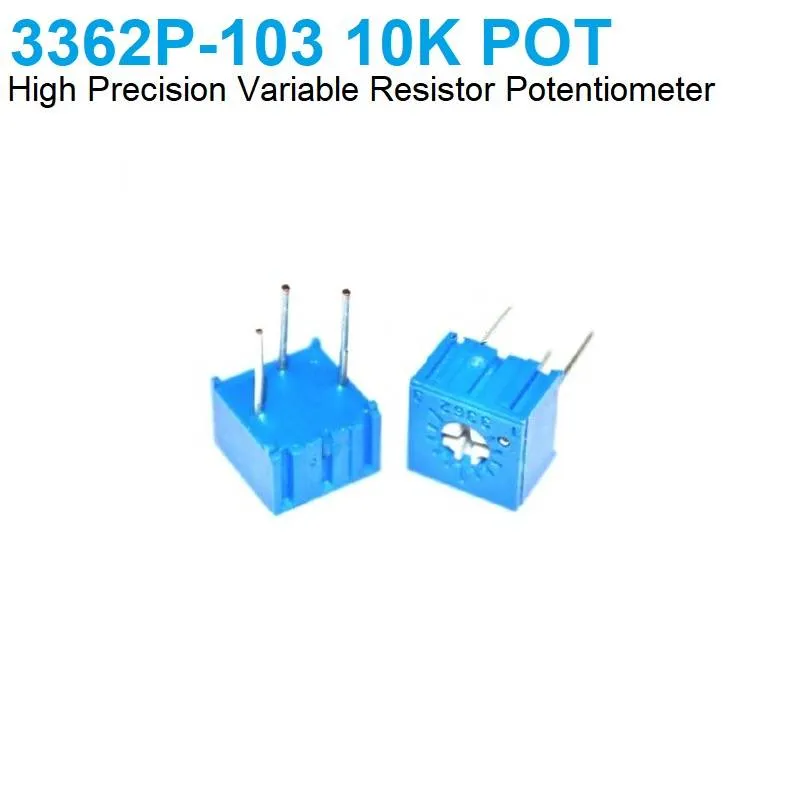

3362P-103 10kΩ Precision Trimmer Potentiometer, Vertical Screw
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | 3362P-103 10K ohm High Precision Variable Resistor Potentiometer | 10 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 10 EGP
About this product
The 3362P-103 is a 10kΩ precision trimmer potentiometer from the Bourns 3362 family, sealed against moisture and dirt. It has a linear taper and a vertical screw for adjustment. It is used for calibrating circuits, setting reference voltages and tuning amplifier or sensor gain.
Specifications
- Resistance
- 10 kΩ
- Taper
- Linear
- Adjustment
- Vertical screw
- Minimum resistance
- 2 Ω or 1% maximum
- Insulation resistance
- 1000 MΩ minimum at 500 VDC
- Sealing
- Sealed against moisture and dirt
Frequently asked questions
What is the price of 3362P-103 10kΩ Precision Trimmer Potentiometer, Vertical Screw in Egypt?
3362P-103 10kΩ Precision Trimmer Potentiometer, Vertical Screw currently costs 10 EGP in Egypt.
Where can I buy 3362P-103 10kΩ Precision Trimmer Potentiometer, Vertical Screw in Egypt?
3362P-103 10kΩ Precision Trimmer Potentiometer, Vertical Screw is available from UGE. Compare the offers above to find the best price.
How do I wire a trimmer as a voltage divider?
Connect the two outer pins to the supply and GND, and take the middle pin (wiper) to the point you want to set. Turning the screw changes the wiper voltage between the two ends.
Can I connect the wiper to a microcontroller ADC pin?
Yes. Feed the wiper to an ADC pin and keep the voltage within the microcontroller's supply range. A small capacitor from the wiper to GND can reduce noise in the reading.
