2SC5249 NPN Power Transistor TO-220F 600V 3A
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | 2SC5249 NPN Power Transistor TO-220F (600V, 3A) | 20 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 20 EGP
About this product

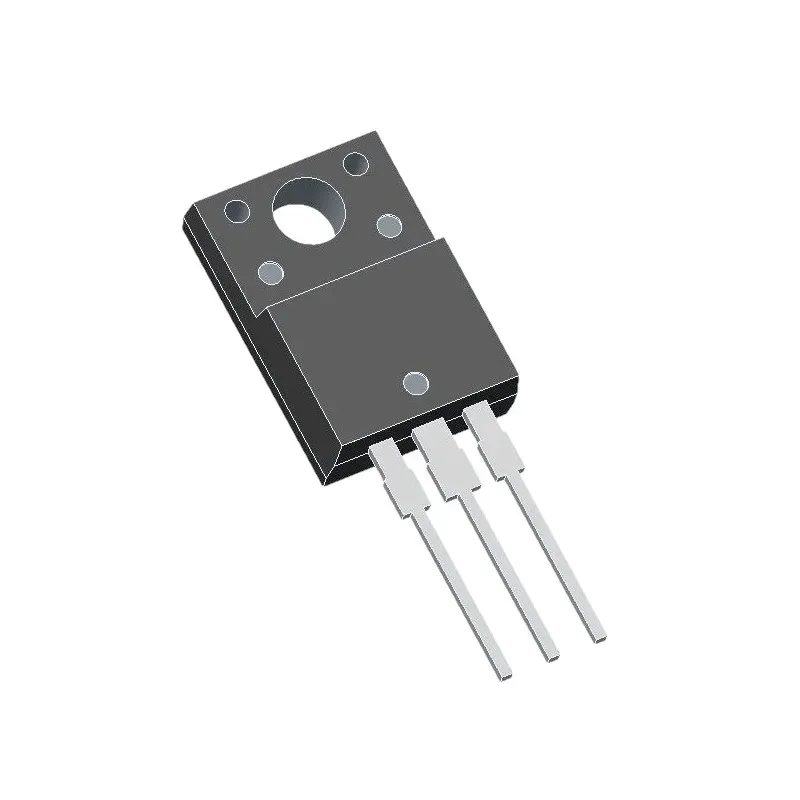

2SC5249 is a silicon NPN power transistor in an insulated TO-220F package, rated 600 V Vceo, 3 A collector current and 35 W maximum collector dissipation. It suits high-voltage switching and amplifier applications.
Specifications
- Polarity
- NPN
- Max collector-emitter voltage (Vceo)
- 600 V
- Max collector-base voltage (Vcb)
- 600 V
- Max emitter-base voltage (Veb)
- 7 V
- Max collector current (Ic)
- 3 A
- Max collector power dissipation (Pc)
- 35 W
- Min DC current gain (hFE)
- 20
- Package
- TO-220F
Frequently asked questions
What is the price of 2SC5249 NPN Power Transistor TO-220F 600V 3A in Egypt?
2SC5249 NPN Power Transistor TO-220F 600V 3A currently costs 20 EGP in Egypt.
Where can I buy 2SC5249 NPN Power Transistor TO-220F 600V 3A in Egypt?
2SC5249 NPN Power Transistor TO-220F 600V 3A is available from Makers Electronics. Compare the offers above to find the best price.
What is the advantage of the TO-220F package?
TO-220F has an insulated mounting tab, so the transistor can be mounted on a heatsink without an insulating washer. A thermal interface material is still recommended.
How much base current do I need?
The minimum hFE is 20, so base current should be at least Ic/20. For switching use, supply more base current to drive the transistor fully into saturation.
