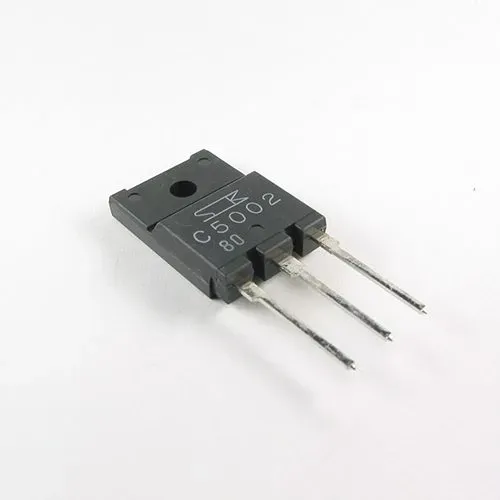

2SC5002 NPN Power Transistor TO-3PF
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | 2SC5002 NPN Power Transistor TO-3PF | 30 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 30 EGP
About this product
The 2SC5002 is a silicon NPN high-voltage power transistor in a fully isolated TO-3PF package. It is rated for 1500 V collector-base voltage, 800 V collector-emitter voltage, 7 A collector current and 80 W power dissipation. It is intended for high-voltage switching applications.
Specifications
- Polarity
- NPN
- Material
- Si (silicon)
- Max collector power dissipation (Pc)
- 80 W
- Max collector-base voltage (Vcb)
- 1500 V
- Max collector-emitter voltage (Vce)
- 800 V
- Max collector current (Ic)
- 7 A
- Transition frequency (ft)
- 4 MHz
- Package
- TO-3PF
Frequently asked questions
What is the price of 2SC5002 NPN Power Transistor TO-3PF in Egypt?
2SC5002 NPN Power Transistor TO-3PF currently costs 30 EGP in Egypt.
Where can I buy 2SC5002 NPN Power Transistor TO-3PF in Egypt?
2SC5002 NPN Power Transistor TO-3PF is available from Makers Electronics. Compare the offers above to find the best price.
Does the TO-3PF package need an insulating washer?
No. TO-3PF is a fully isolated package, so it can be mounted directly on a heatsink. Apply thermal compound for good heat transfer.
How should the 2SC5002 be wired?
Confirm the pin assignment in the datasheet for the exact part. TO-3PF pinouts can differ between manufacturers, and wrong wiring can destroy the transistor.
