24C16 2K x 8 (16Kbit) I2C Serial EEPROM DIP-8
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers ElectronicsCheapest | 24C16 2Kx8 (16k) Serial CMOS EEPROM Dip | 10 EGP | View in store |
| Most Electronics | EEPROM 24C16 | 15.9 EGP18.77 | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 10 EGP
About this product

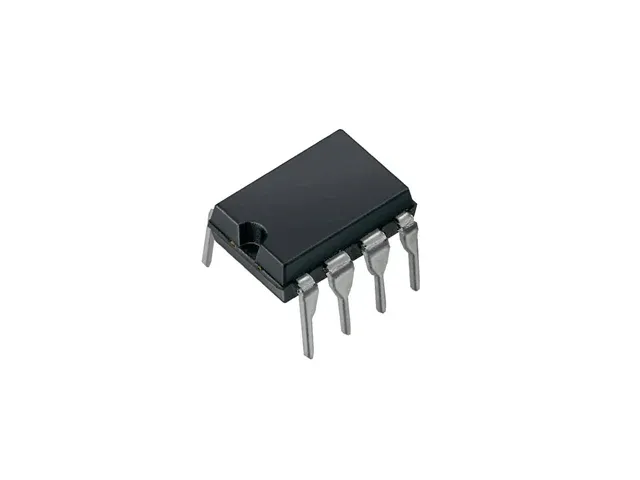

The 24C16 is a 16 Kbit (2K × 8) serial EEPROM in an 8-pin DIP package that keeps data without power. It uses a 2-wire I²C interface, so it is easy to add to microcontroller projects for saving settings, calibration values or logs.
Specifications
- Capacity
- 16 Kbit (2K × 8)
- Interface
- I²C (2-wire)
- Base I²C address
- 0x50
- Write protect pin
- Yes (WP)
- Package
- DIP-8
Frequently asked questions
What is the price of 24C16 2K x 8 (16Kbit) I2C Serial EEPROM DIP-8 in Egypt?
24C16 2K x 8 (16Kbit) I2C Serial EEPROM DIP-8 currently costs between 10 and 15.9 EGP across 2 offers in Egypt.
Where can I buy 24C16 2K x 8 (16Kbit) I2C Serial EEPROM DIP-8 in Egypt?
24C16 2K x 8 (16Kbit) I2C Serial EEPROM DIP-8 is available from Makers Electronics and Most Electronics. Compare the offers above to find the best price.
How do I wire it to a microcontroller?
Connect VCC and GND, connect SDA and SCL to the MCU's I²C pins, and add pull-up resistors (commonly 4.7 kΩ) on SDA and SCL if your board does not have them. Tie WP to GND to allow writes, or to VCC to protect the array.
Does it work with Arduino or ESP32?
Yes, using the standard I²C library such as Wire on Arduino or ESP32. Because the 24C16 uses block-select bits inside its device address, use a library or code that handles this addressing to access the full 2 KB.
