2-Channel 12V Relay Module, Optically Isolated, Active High Trigger
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | Relay Module 12V 2CH Active High Trigger | 110 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 110 EGP
About this product

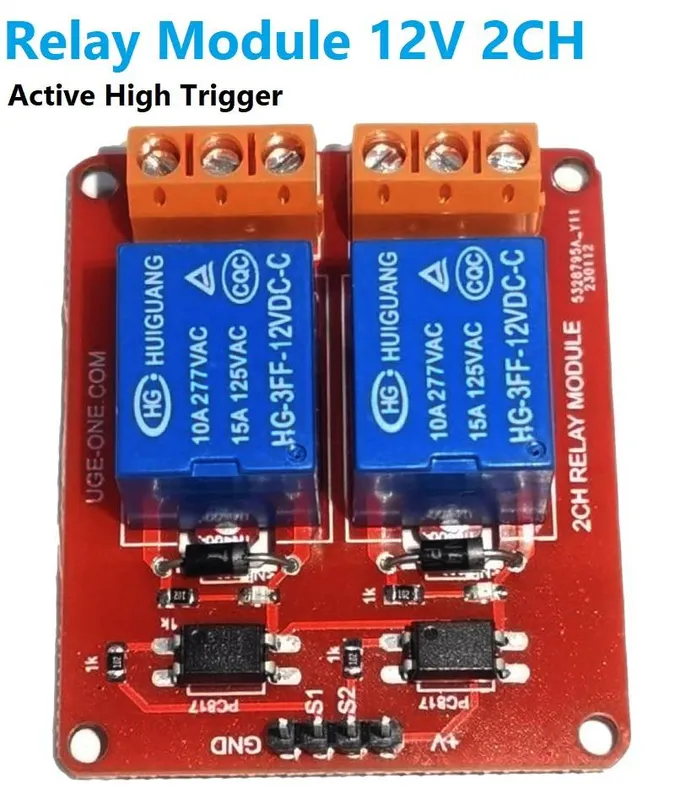

A two-channel relay module with a 12V relay supply and optical isolation between the control inputs and the relay circuit. Each channel has NO and NC contacts and an indicator LED that shows its state. It can be driven directly by microcontrollers such as Arduino, AVR, PIC, ARM and MSP430.
Specifications
- Number of channels
- 2
- Relay supply voltage
- 12 V
- Trigger type
- Active high
- Trigger level
- High 5-12 V
- Isolation
- Optically isolated
- Contacts
- NO and NC per relay
- Status indicator
- LED per relay
Frequently asked questions
What is the price of 2-Channel 12V Relay Module, Optically Isolated, Active High Trigger in Egypt?
2-Channel 12V Relay Module, Optically Isolated, Active High Trigger currently costs 110 EGP in Egypt.
Where can I buy 2-Channel 12V Relay Module, Optically Isolated, Active High Trigger in Egypt?
2-Channel 12V Relay Module, Optically Isolated, Active High Trigger is available from UGE. Compare the offers above to find the best price.
Can I connect it directly to an Arduino?
Yes. The listing states it can be controlled directly by Arduino and similar microcontrollers. The control inputs are active high, so the relay turns on when the input is driven high (5 to 12 V range).
Which contact should I use for a load that is off by default?
Use NO (normally open) with COM. The circuit closes when the relay is energised. NC (normally closed) is connected to COM when the relay is off.
