16x2 LCD Display with PCF8574 I2C Module, Pre-Soldered
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

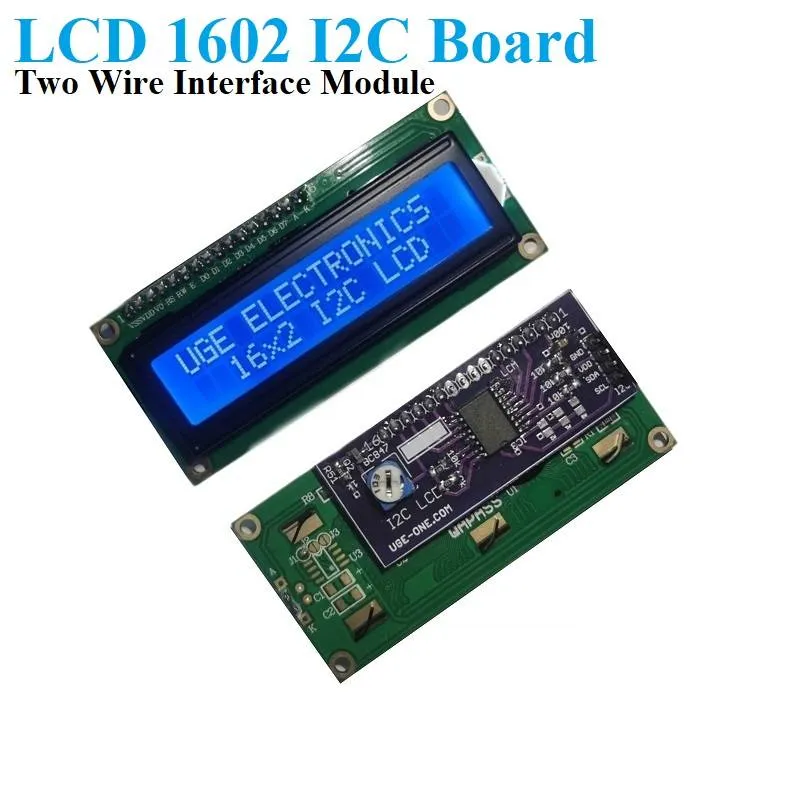

A 16x2 character LCD module with a PCF8574 I2C backpack already soldered on. It reduces the wiring from a microcontroller to four connections: power, ground, SDA and SCL. It is commonly used with Arduino and ESP boards for menus and sensor readouts.
Specifications
- Display size
- 16 x 2 characters
- Interface
- I2C (PCF8574 backpack)
- Controller
- HD44780-compatible
- Module condition
- Pre-soldered I2C backpack
Frequently asked questions
How do I wire this LCD to an Arduino?
Connect VCC to 5V, GND to GND, SDA to the SDA pin and SCL to the SCL pin. On an Arduino Uno, SDA is A4 and SCL is A5. Then load an I2C LCD library.
What I2C address does the module use?
Many PCF8574 backpacks use address 0x27 or 0x3F, but the address depends on the board. Run an I2C scanner sketch to confirm the address before writing code, and adjust the contrast with the potentiometer on the backpack if text is not visible.
