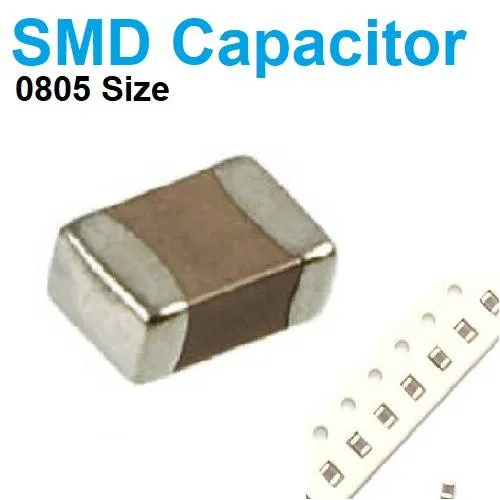

0805 Ceramic Capacitor 10pF C0G 50V ±5%
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | Smd Chip Ceramic Capacitor size 0805 10pF | 2 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 2 EGP
About this product
A 0805 SMD multilayer ceramic capacitor with a 10pF value, C0G/NP0 dielectric, ±5% tolerance and a 50V rating. C0G is a stable, low-loss dielectric, so this part suits RF matching, oscillator and timing circuits where capacitance must not drift with temperature.
Specifications
- Capacitance
- 10 pF
- Tolerance
- ±5%
- Rated voltage
- 50 V
- Dielectric
- C0G (NP0)
- Operating temperature
- -55°C to +125°C
- Package size
- 0805 (2.00 × 1.25 mm)
- Maximum thickness
- 0.75 mm
Frequently asked questions
What is the price of 0805 Ceramic Capacitor 10pF C0G 50V ±5% in Egypt?
0805 Ceramic Capacitor 10pF C0G 50V ±5% currently costs 2 EGP in Egypt.
Where can I buy 0805 Ceramic Capacitor 10pF C0G 50V ±5% in Egypt?
0805 Ceramic Capacitor 10pF C0G 50V ±5% is available from UGE. Compare the offers above to find the best price.
Why choose a C0G capacitor for this value?
C0G (NP0) has very low temperature drift and low losses, which keeps 10pF stable in RF matching, oscillators and timing networks. Use X7R or other dielectrics only where tight stability is not required.
How can I identify the value if the capacitor is unmarked?
Many 0805 ceramic capacitors have no printed value. When a code is printed, 100 means 10pF. If it is unmarked, measure it with an LCR meter or check the reel or packaging label before use.
