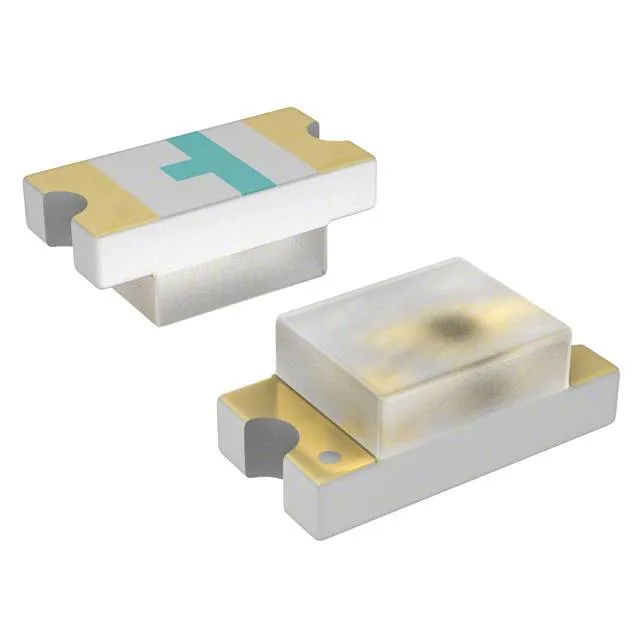

0603 SMD LED Orange 700 mcd 3.2V
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A 0603 surface-mount orange LED with a forward voltage of 3.2 V and a brightness of 700 mcd. Its small size suits status indicators and compact SMD designs, and it can be used to build tiny LED matrices. Like any LED, it needs a series current-limiting resistor when connected to a voltage source.
Specifications
- Package
- 0603 SMD
- Color
- Orange
- Forward voltage
- 3.2 V
- Brightness
- 700 mcd
Frequently asked questions
What series resistor should I use?
Calculate R = (Vsupply - Vf) / I. For example, with a 5 V supply, a 3.2 V forward voltage and a 10 mA target current, R is about 180 ohm. Choose the current according to the datasheet limits.
Is it suitable for hand soldering?
Yes, with a fine-tip iron and care, or with reflow soldering. The 0603 package is small, so handle it carefully and check the polarity marking before soldering.
